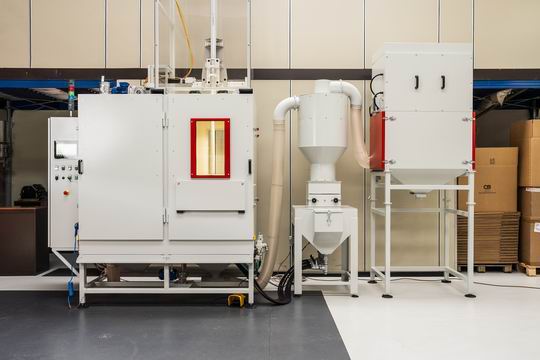

Astroblast 6P Automatic Blasting Booth
ASTRO 6P is an automatic sandblasting and bead blasting machine designed to guarantee a perfectly homogeneous finish of the parts.

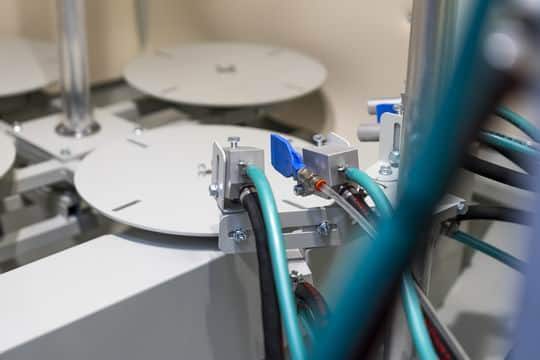

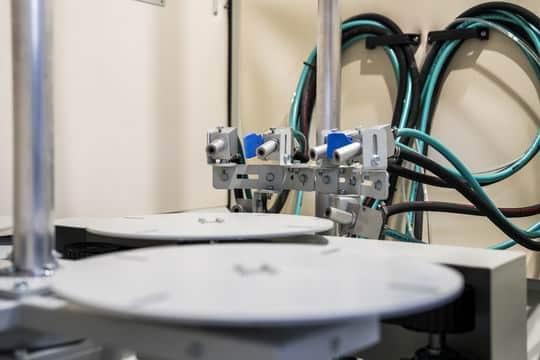

Equipped with 6 spray guns and 4 loading satellites, it offers high productivity and flexibility, with loading possible by operator or robot.
Its PLC stores multiple processing recipes, allowing cycles to be automatically adapted to the shapes, sizes, and materials of the parts.
Designed for continuous work, the ASTRO 6P ensures excellent maintenance autonomy and optimized ergonomics, even for heavy parts.
The ABM 1000 blast cabinet is a high-performance industrial solution specially developed for medium to large series productions, where precision, repeatability and part protection are essential. It is designed to meet the needs of both the processing of regularly shaped parts and that of components with complex or amorphous geometries, which are often difficult to stabilize during sandblasting or bead blasting.
One of the main challenges of surface treatment is very small or very light parts, which are susceptible to projection, damage or poor treatment. The ABM 1000 provides an effective response to this problem thanks to a system of interchangeable baskets, specifically designed to cover a wide dimensional range. This allows for reliable processing of parts ranging from 350 microns to 50 mm, without loss of control or deterioration.
The optimized geometry of the sandblasting baskets plays a key role in the quality of the final result. It greatly limits shocks between parts during the processing cycle, ensuring that the mechanical and aesthetic integrity of components is preserved , even during prolonged or intensive cycles.
The operation of the machine has been designed to be both simple and flexible. Once the parts have been inserted into the basket, the operator can choose to work with a closed or open basket, depending on the nature of the parts and the desired result. The process is then started via an intuitive control screen, allowing the selection or creation of custom blasting recipes. The embedded software offers a high degree of freedom of configuration in order to precisely adapt the processing to the requirements of each application.
The ABM 1000 booth is particularly suitable for processing components such as watch bracelets and pushers, oscillating weights, electrical connectors, as well as various steel or rubber parts, in a diameter range between 350 microns and 5 cm. It also stands out for its total compatibility with all the sandblasting aggregates available on the market, thus offering great versatility of use depending on the materials and finishes sought.
Dimensions & Weight
Overall dimensions : 1250 × 2120 × 2500 mm
(variable height up to 4500 mm depending on configuration)Total weight : from 900 to 1,500 kg, depending on equipment and options
Processing capacity
Useful processing volume :
Height : 1250 mm
Diameter : 400 mm
Suitable for processing single parts or small series
Pneumatic system
Compressed air supply :
from 1,000 to 6,000 l/min, depending on the desired productivity
Working pressure :
adjustable from 0.5 to 7 bar
Spraying & Sandblasting Technology
Number of guns : from 4 to 8, depending on configuration
Sandblasting technique :
by vacuum or pressure, depending on the application
Available Options
Magnetic separator for media management
Laser distance sensor for precise projection control
X-axis linear guide for optimized gun positioning
